SPECIFICATIONS
APP Compatibility: YES
Aperture: F1.5
Assembly Mode: Hidden Type
Audio Recorded: Yes
Brand Name: BASETOWN
Built-in Screen: Yes
Cable Length: 6m
Camera Resolution: 2560x1440
Certification: CE,RoHS
Chipset Manufacturer: Generalplus
Choice: yes
Display: IPS
Display Size: 3
Frames Per Second: 30
High-concerned chemical: None
Imaging Sensor: SONY IMX415
Input/Output: AV
Interface: USB 2.0,AV-In,Wi-fi,Micro SD/TF
Is Batteries Included: Yes
Item Type: Car DVR
Loop-Cycle Recording Feature: Yes
Max External Memory: 128G
Maximum Video Frame Rate: 30
Memory Card Required Reding Speed: Class 10
NightShot Function: Yes
Number Of Lenses: 4
OSD Language: Chinese (Simplified),Chinese (Traditional),Danish,English,French,German,Japanese,Korean,RUSSIA,Russian,Spanish
Origin: Mainland China
Original Package: Yes
Pixels: 1200Mega
Power Source: Corded Electric
Rear Camera: Yes
Screen Ratio: 4:3
Special Features: G-Sensor,motion detection,sd/mmc card,With Rearview Mirror,Anti Surge Voltage Impact,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Voice Control,Parking Monitor,3D DNR
Touch Screen: No
Video Code: MJPG
Video Format: AVI,MP4
View angle: 170
Working Temperature: -20~60

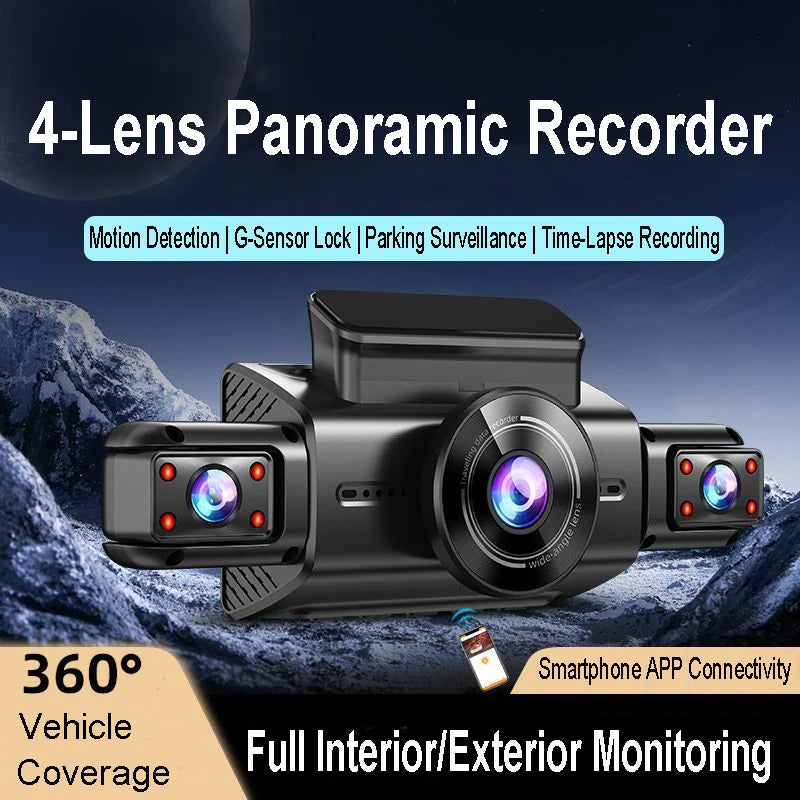

3.0" Stealth 4K Quad-Camera Dash Cam - 360° Vehicle Protection System
Complete Surveillance Solution for Your Vehicle

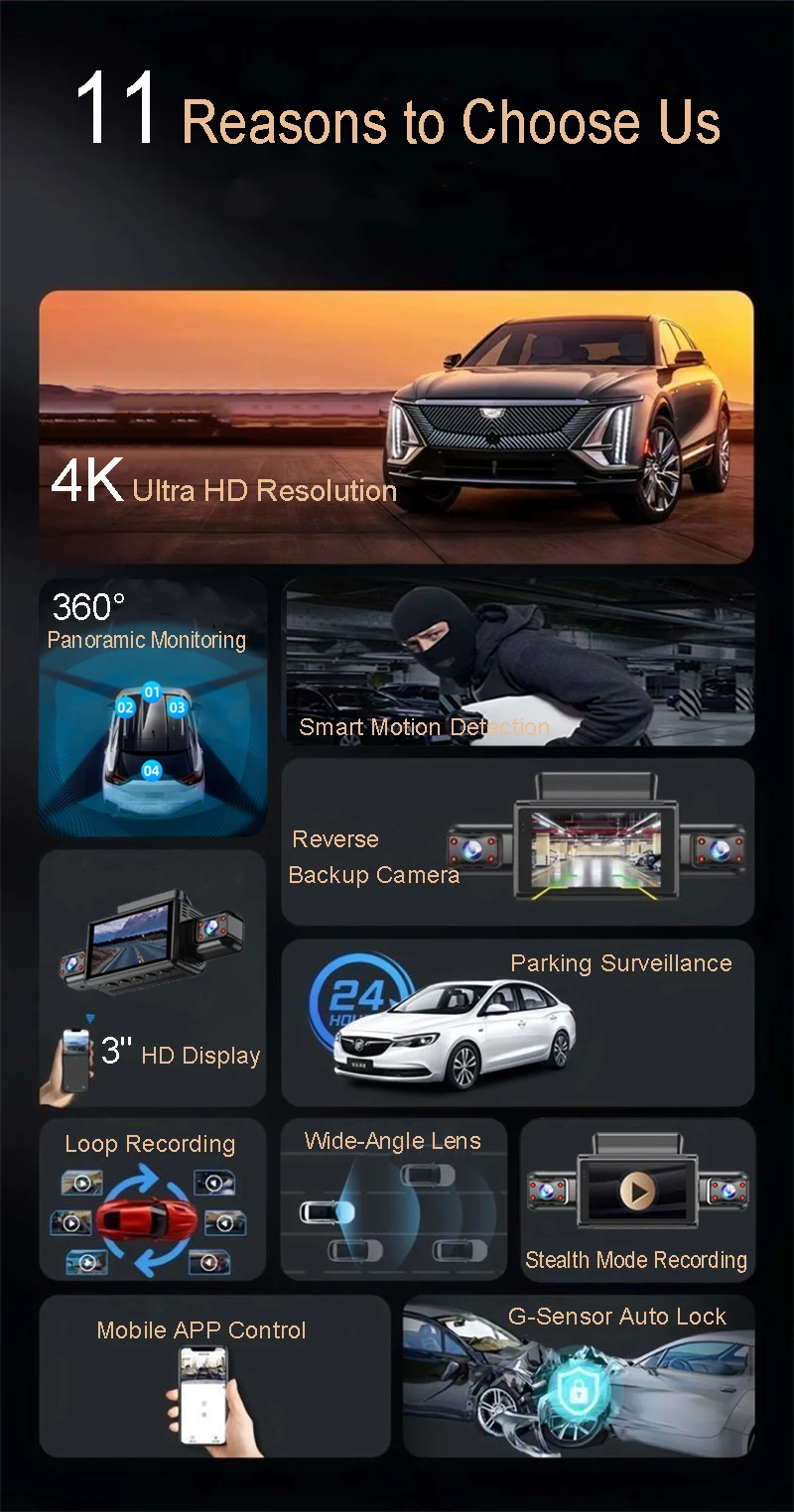

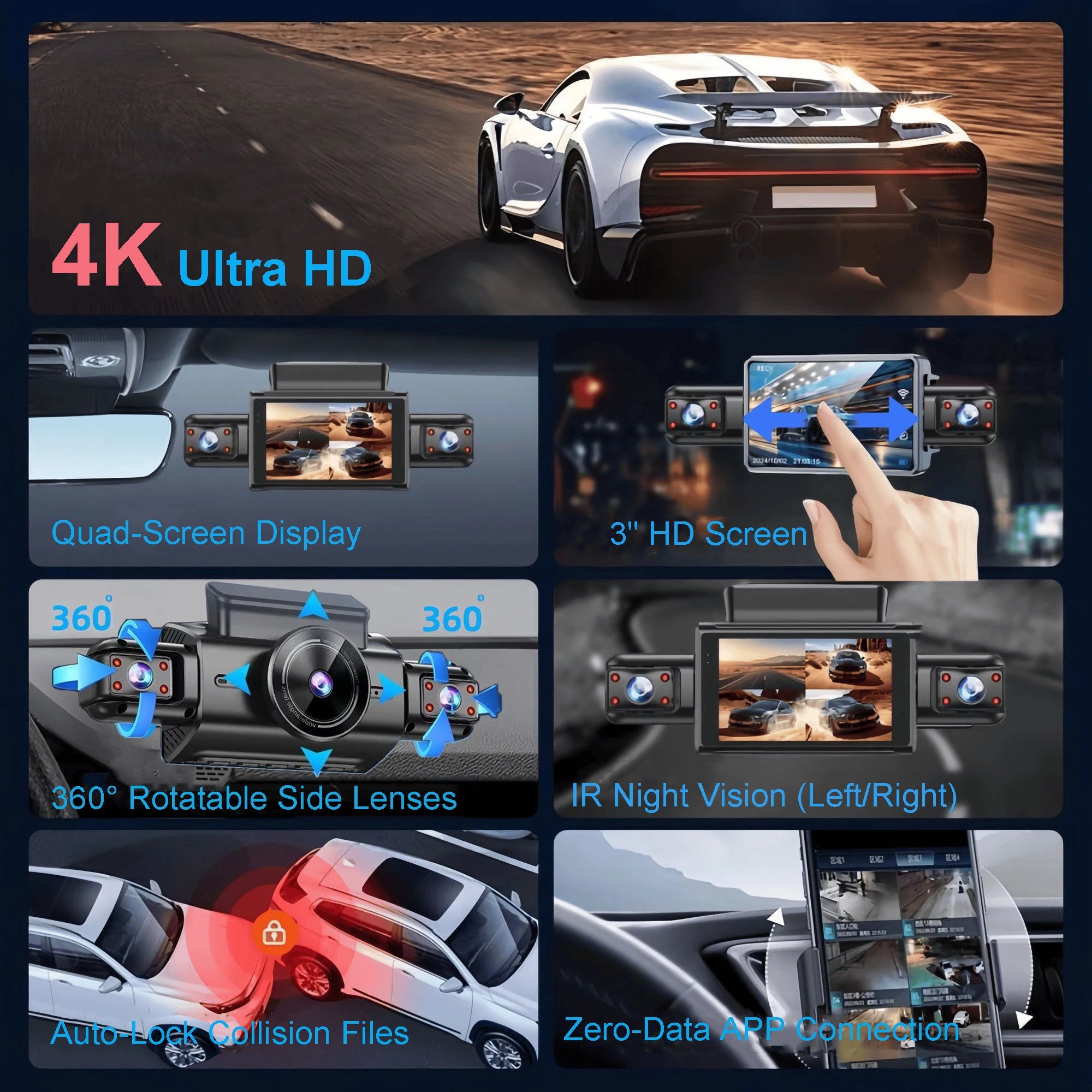

🚗 Key Features at a Glance🚀

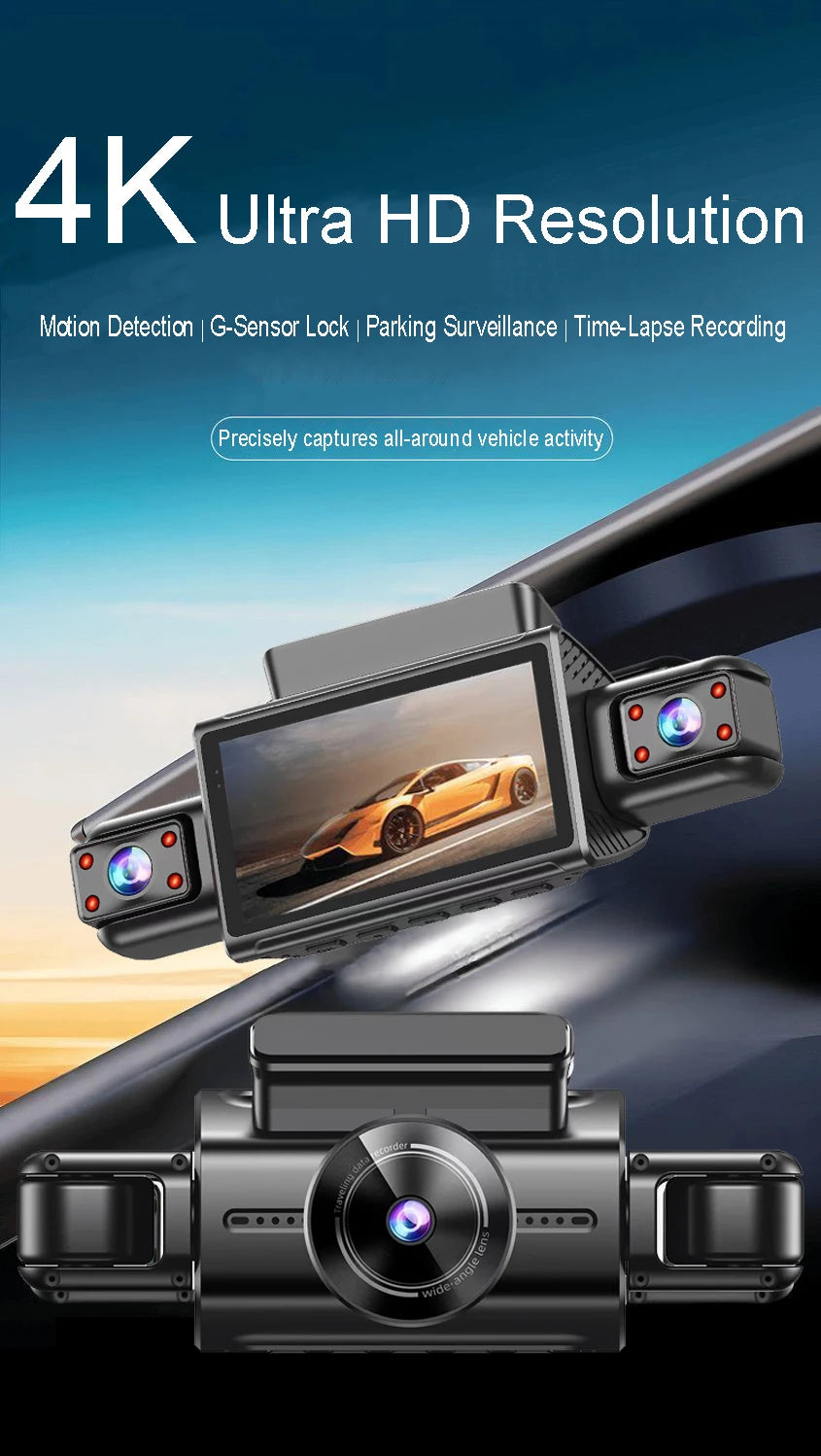

✔ 4k high-definition resolution main camera
✔ 360° Adjustable Side Cameras - Capture any angle
✔ 3.0" IPS Display with hidden design
✔ 24/7 Parking Monitoring with impact detection
✔ Advanced Night Vision with Starlight Technology
✔ WiFi & App Control - View footage instantly
✨ Full Feature Breakdown

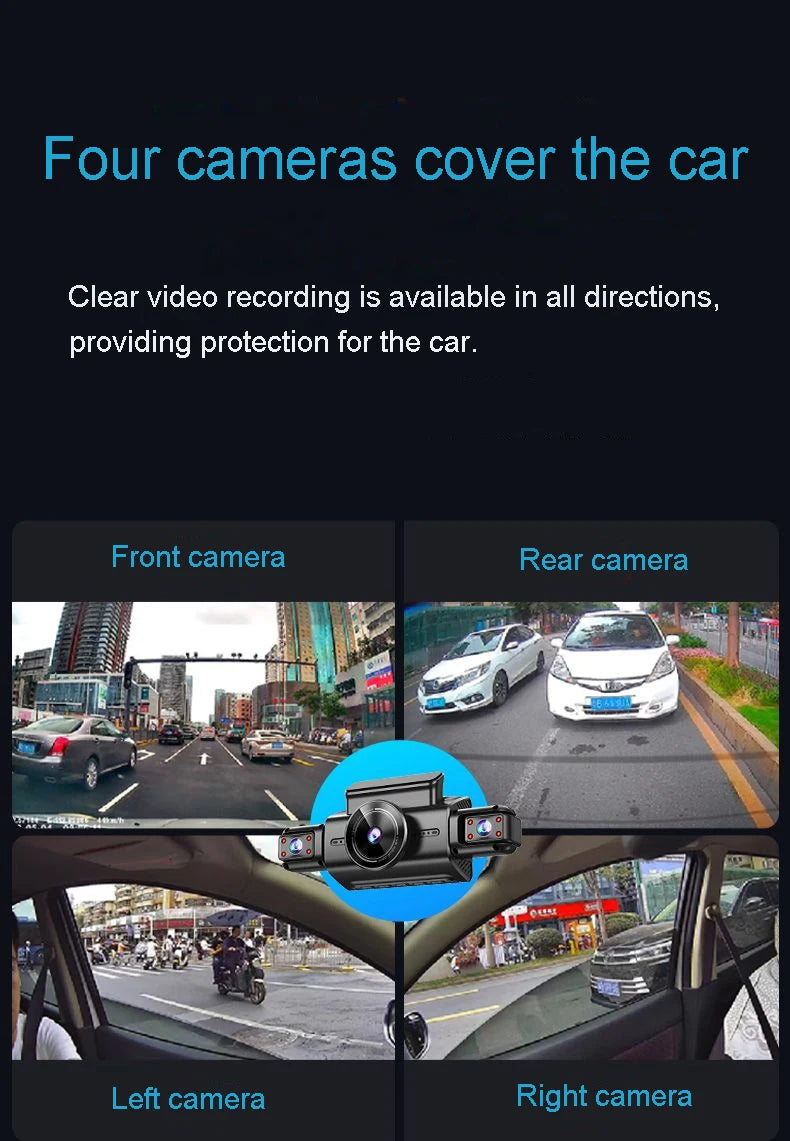

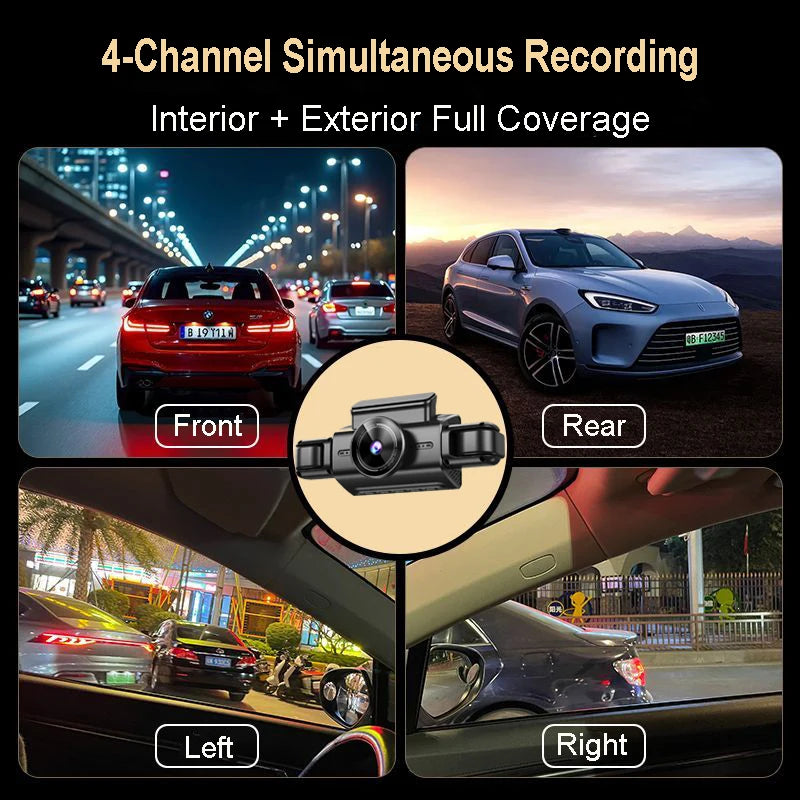

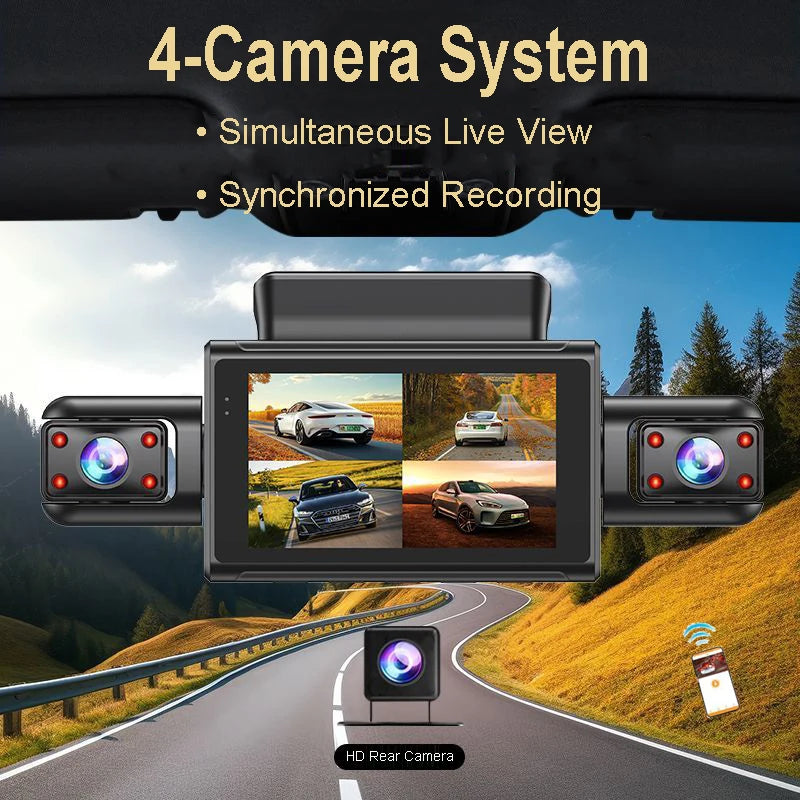

1. 📷Quad-Camera Surveillance System
4 independent cameras monitor all sides of your vehicle simultaneously
Front + Rear + Left + Right coverage
Complete interior/exterior recording for maximum security

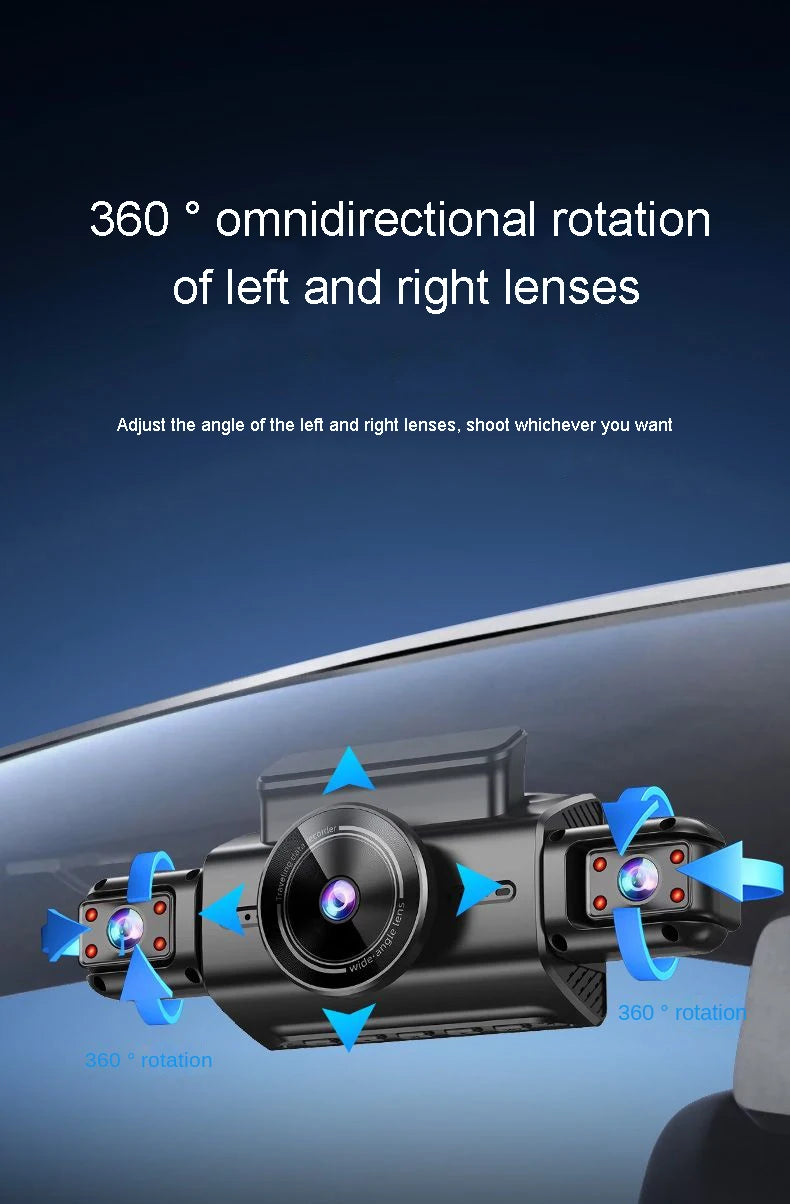

2. 🔄360° Rotatable Cameras
Side cameras rotate full 360° (up/down/left/right)
Adjustable to perfect viewing angles
Capture license plates, side impacts, or interior details
3. 👁️Hidden 3.0" IPS Display
Compact 3-inch touchscreen for live preview
More intuitive than screenless dash cams
Discreet design doesn't attract attention

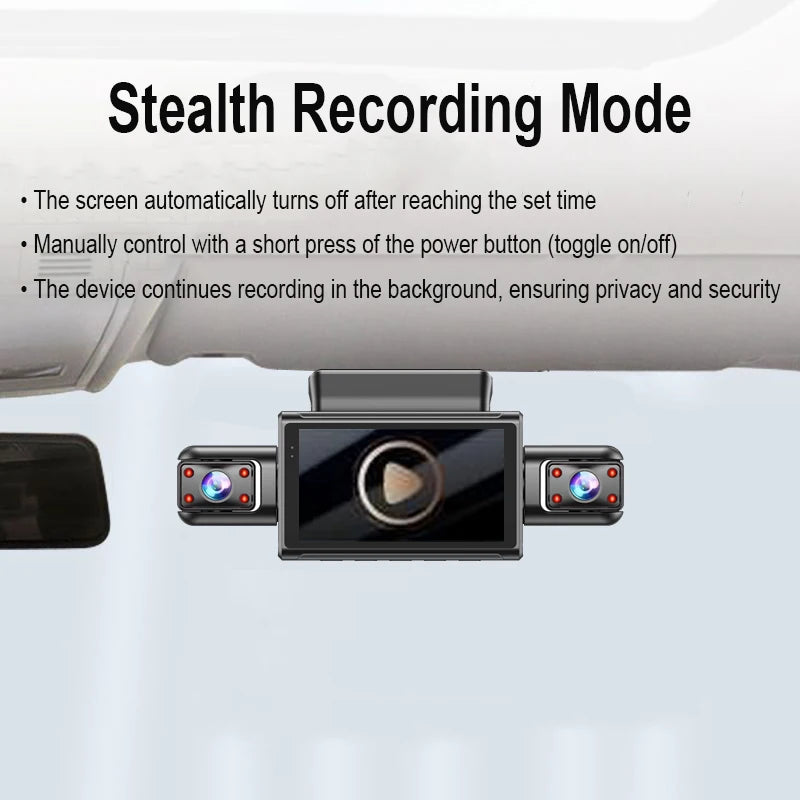

4. 🔒Privacy Screen Mode
Auto screen-off while continuing to record
Manual toggle with single power button press
Protects your privacy in sensitive situations

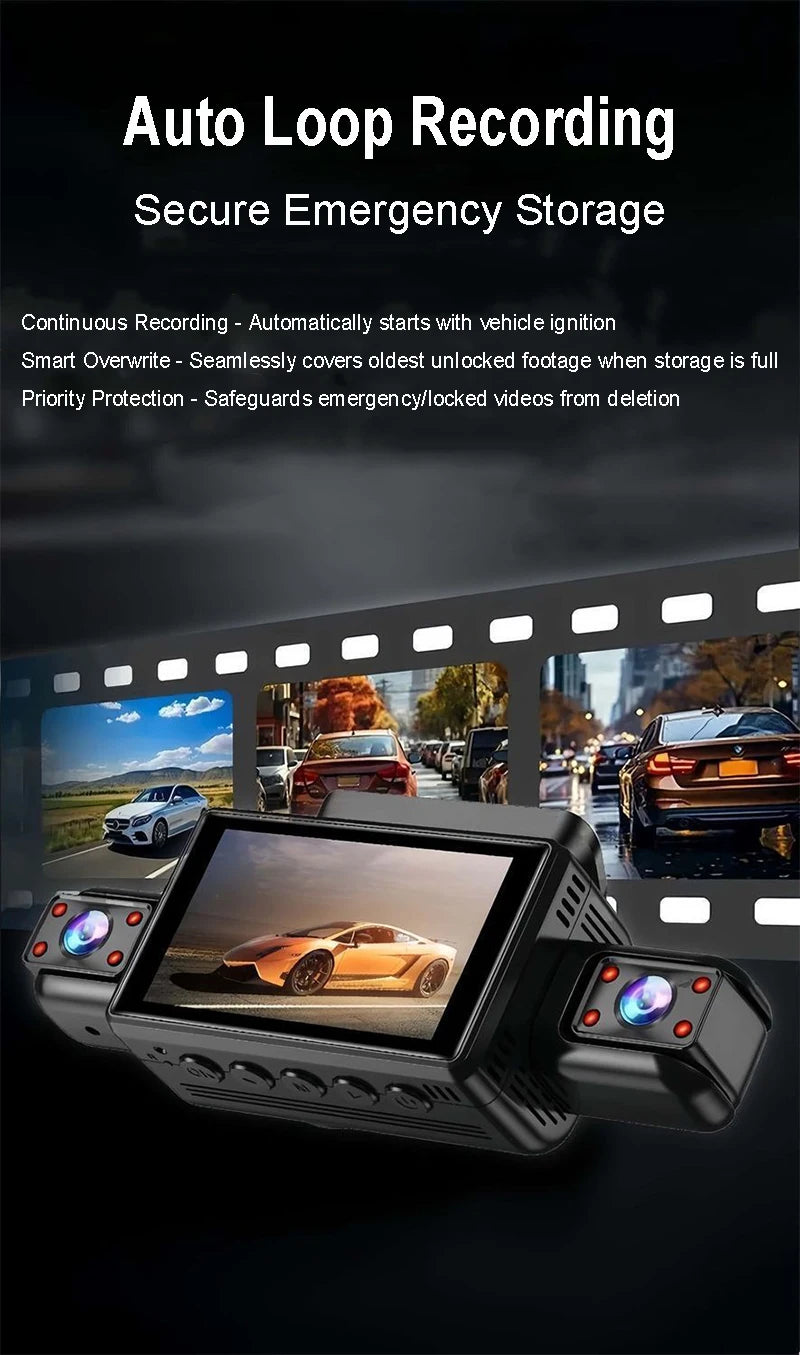

5. ♻️Seamless Loop Recording
Automatically overwrites oldest footage
Emergency videos protected from deletion
Never worry about manual file management
6. 🚨Smart Motion Detection
Auto-starts recording when movement detected
24/7 security against break-ins/vandalism
Captures suspicious activity around parked car
7. ⏱️ 24-Hour Parking Guard
Auto-records impacts while parked
Catches hit-and-runs, door dings, theft attempts
Hardwiring Kit (Fuse Box Power Supply) required for purchase

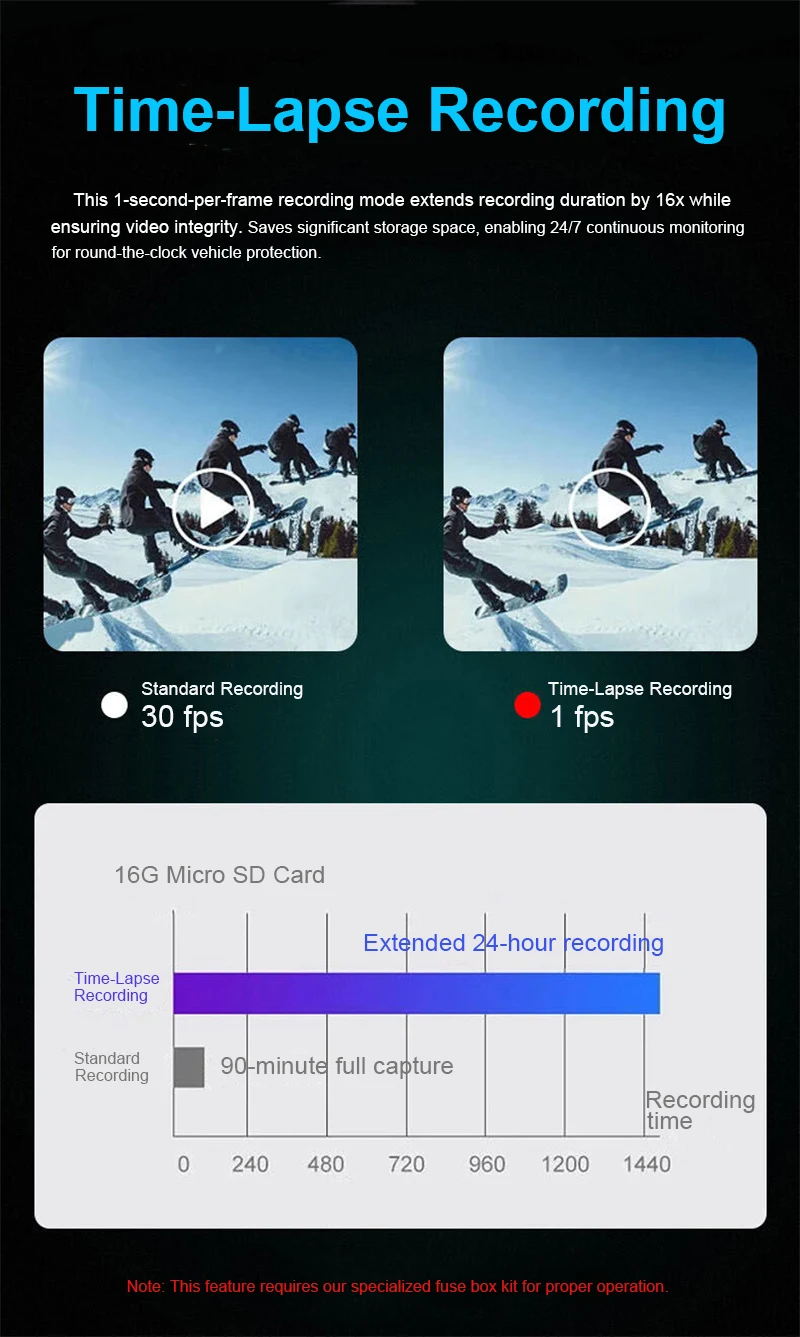

8. ⏩Time-Lapse Recording
1-10 FPS options for parking mode
Saves storage space while maintaining coverage
Quickly review long parking periods
Hardwiring Kit (Fuse Box Power Supply) required for purchase
9.💥 G-Sensor Impact Lock
Automatically saves crash footage
3-axis detection for all collision types
Preserves critical evidence for insurance
10. 🌈HDR Imaging Technology
Wide dynamic range for challenging lighting
Clear details in bright and dark areas
Read license plates in any conditions
11.📱 WiFi & Mobile App
View/download videos via free app
No data usage - direct WiFi connection
Easy sharing of important footage

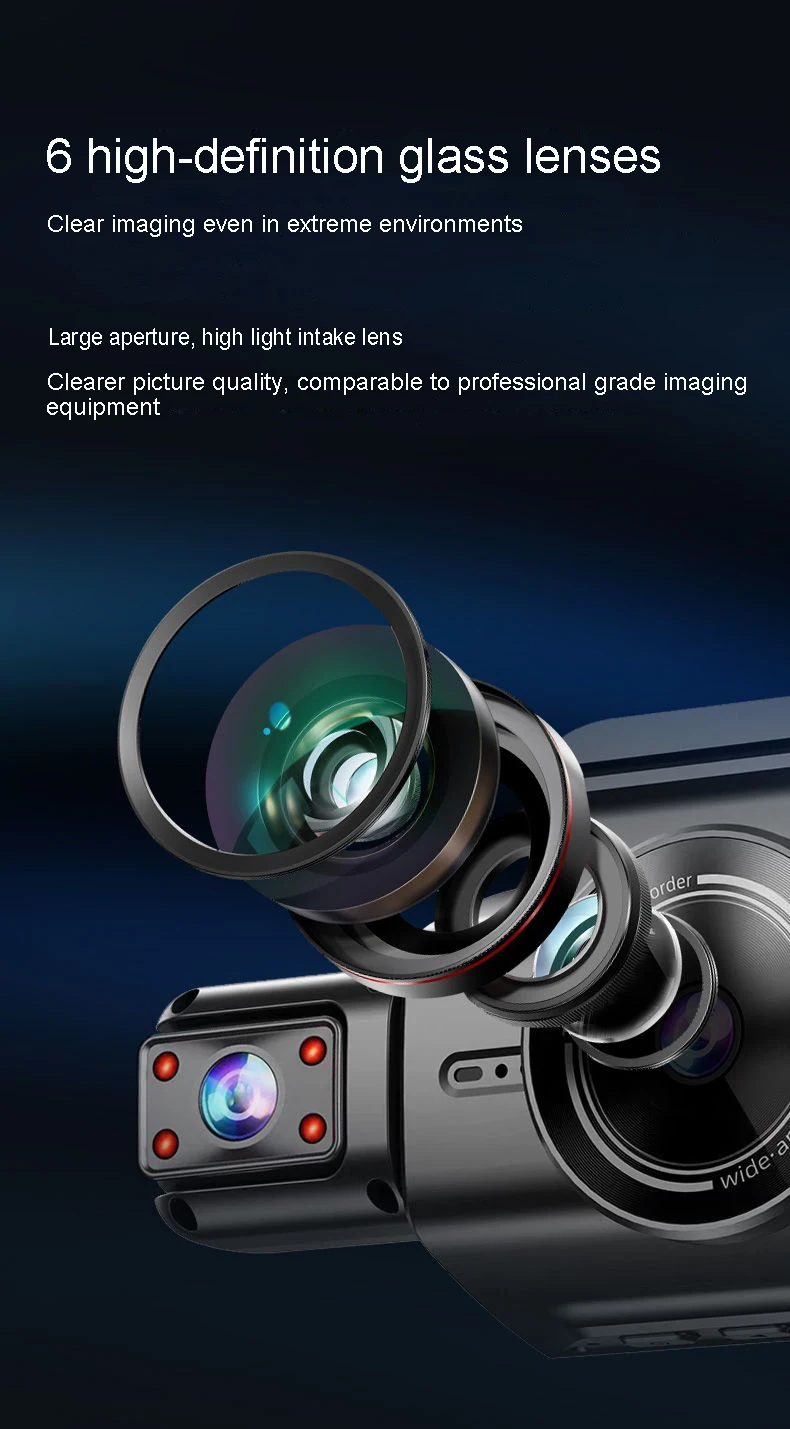

12. 🔍Premium 6-Glass Lens System
High light transmission for clarity
Reduced distortion and glare
Professional-grade optics

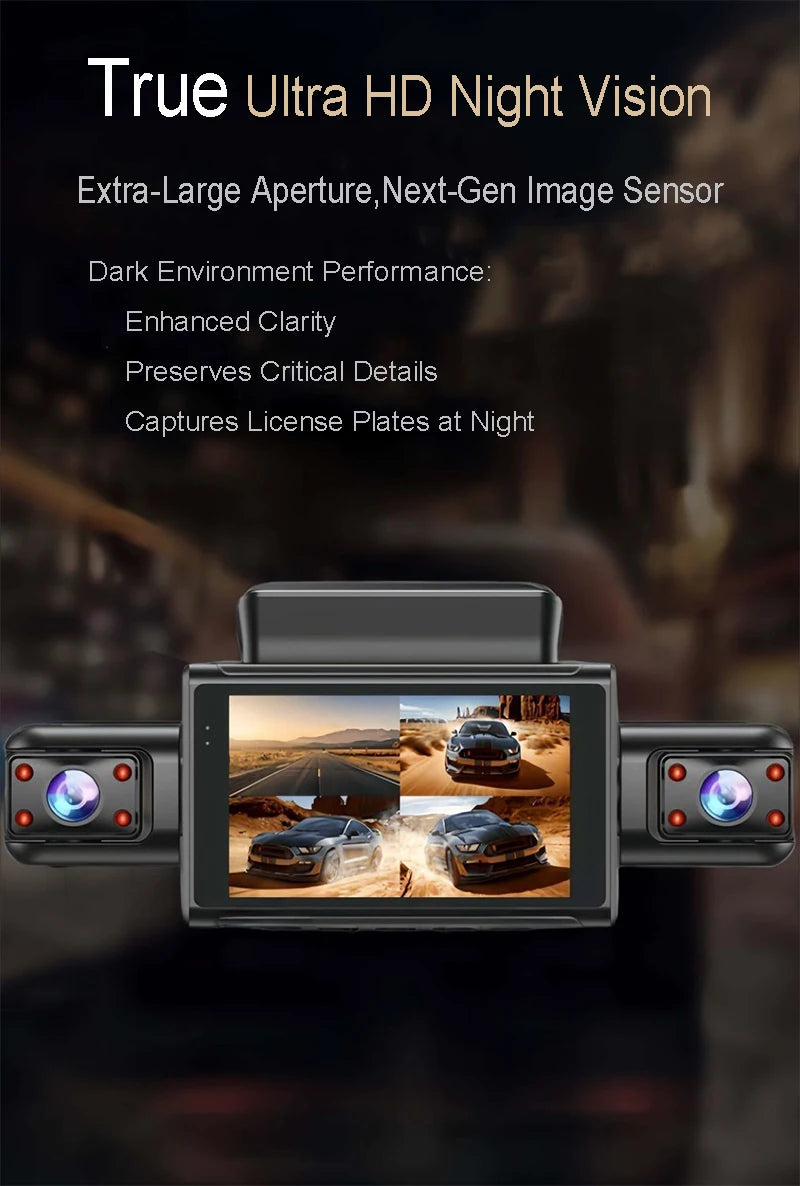

13. 🌙Starlight Night Vision
Infrared-enhanced low-light recording
5x better than human night vision
Clear footage in pitch darkness
14. 💡Need to Purchase Compatible Accessories Separately?

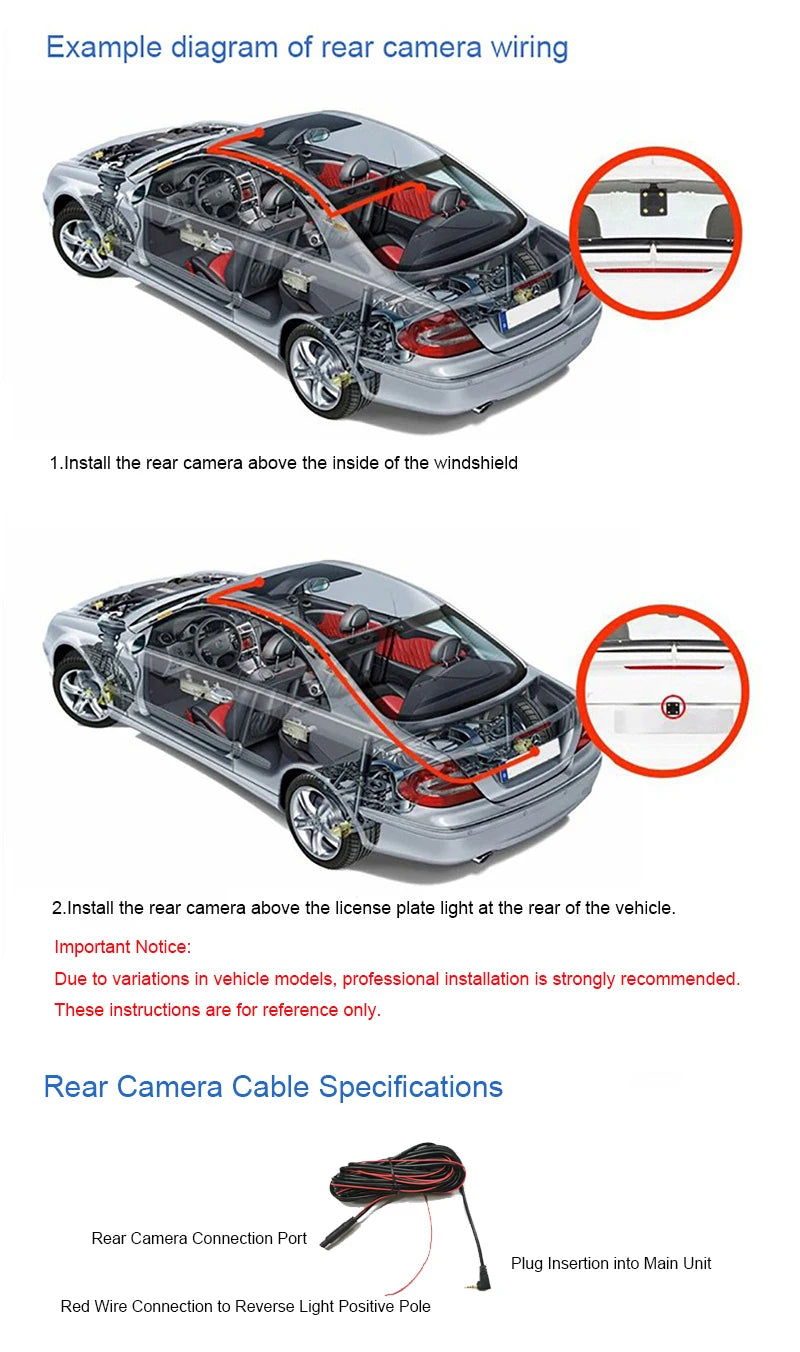

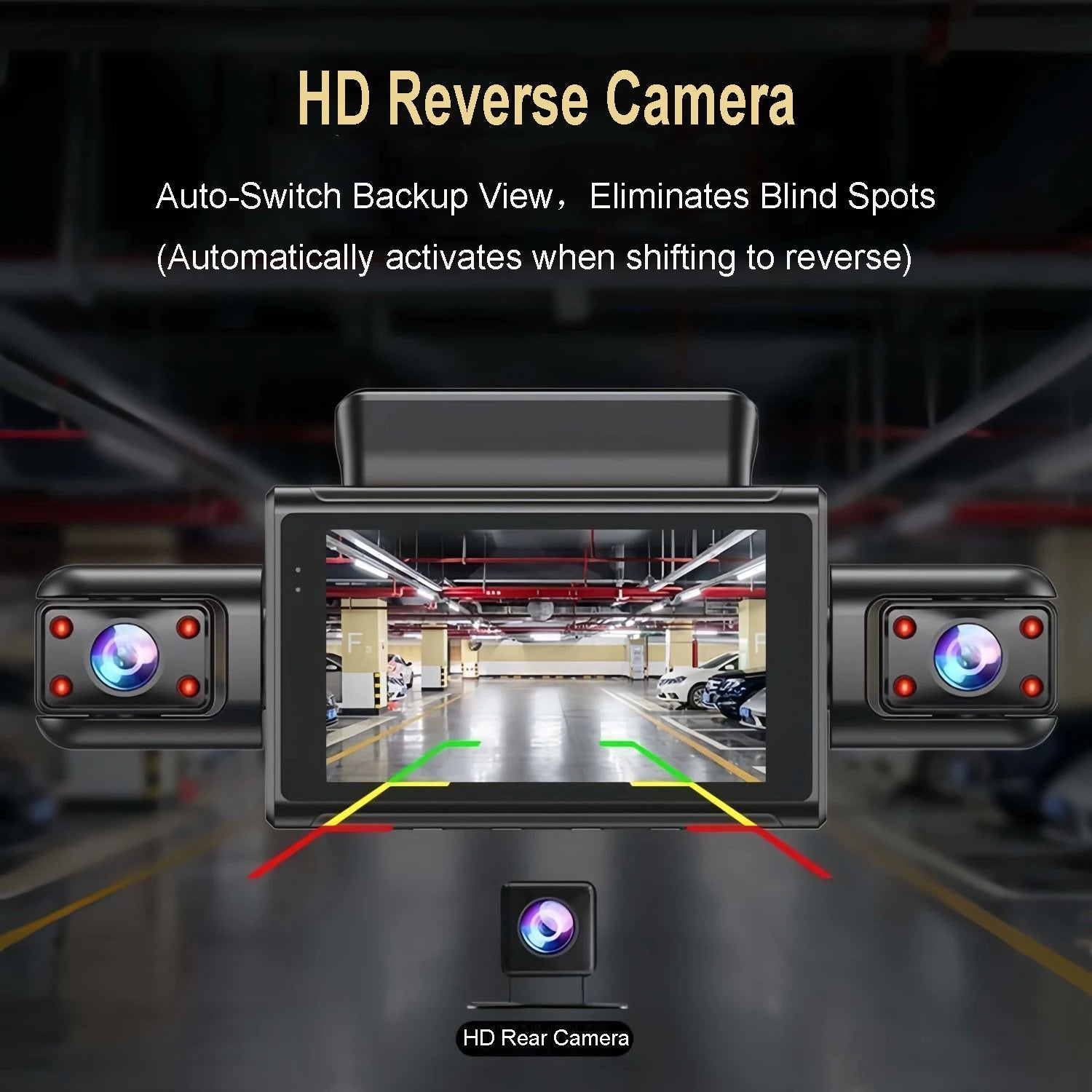

🔗 Compatible Rear Camera Link:➡️ Please select the [2.5HPJ USB Fisheye] package
🔗 Compatible Fuse Box Power & Car Charger Link:

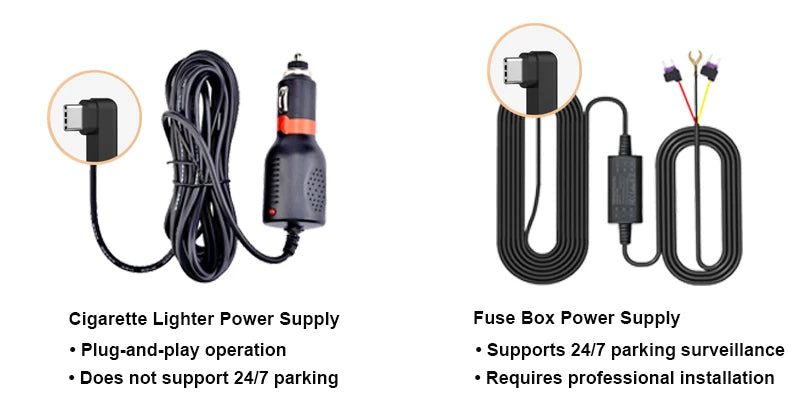

I. Dash cams typically support two power supply options:
1.Cigarette lighter adapter:
Advantages: Easy to install; simply plug it into the car’s cigarette lighter socket.
Limitations: The dashcam will not receive power when the car is turned off, so the parking monitoring feature cannot be used.

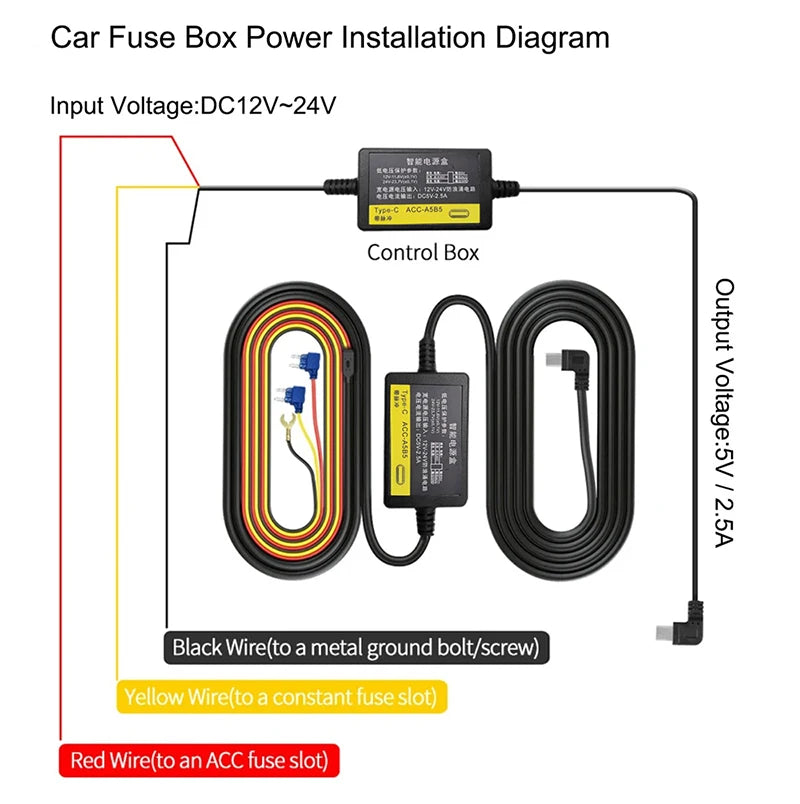

2.Hardwiring Kit(Fuse Box Wiring Kit ):
Advantages: Allows continuous recording even when the car is turned off, enabling 24/7 monitoring. Equipped with a dedicated chip that automatically cuts off power when the car battery voltage is low, protecting the battery.
Limitations: Requires manual installation and wiring to connect to the car’s fuse box.

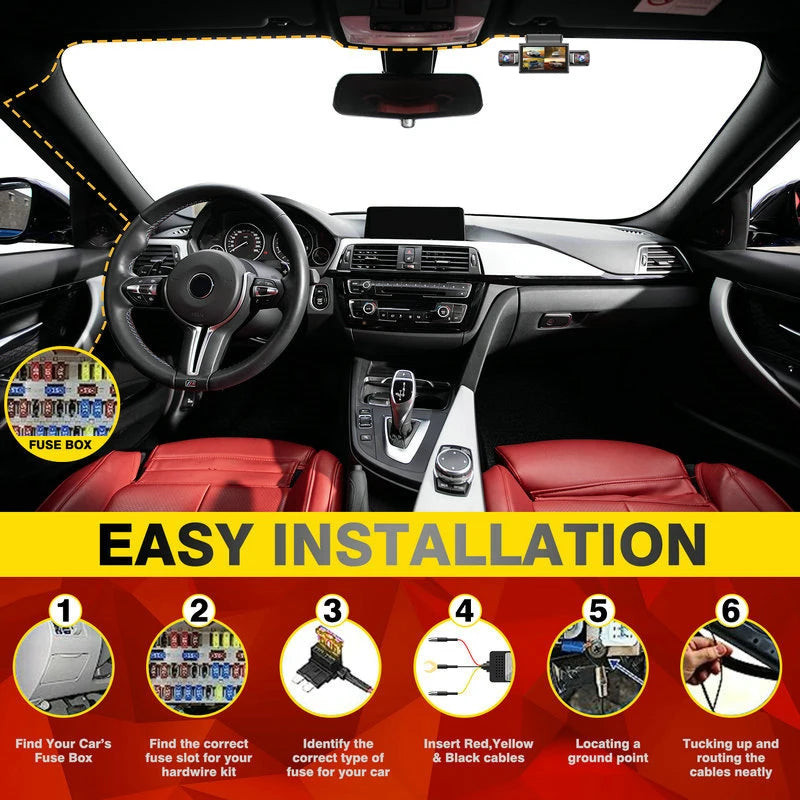

II. Installation

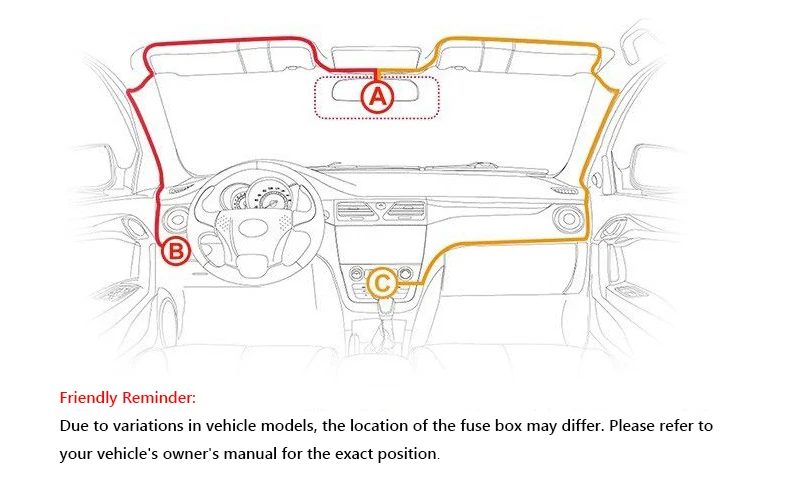

A.Installation location of recorder host
Suggest the installation area as shown in the diagram, hide the connection line along the front windshield into the ceiling and connect it to the fuse box through the A-pillar;
B.Hardwiring Kit(Fuse Box Wiring Kit )
Paired with a dedicated intelligent step-down line, achieving 24-hour parking monitoring requires constant power connection, and low-voltage automatic power-off protection to prevent battery depletion;
C.Cigarette lighter adapter
Using the same method, hide a hidden line on the same path on the passenger side, and connect the central control cigarette lighter to power up through the lower part of the passenger storage compartment.

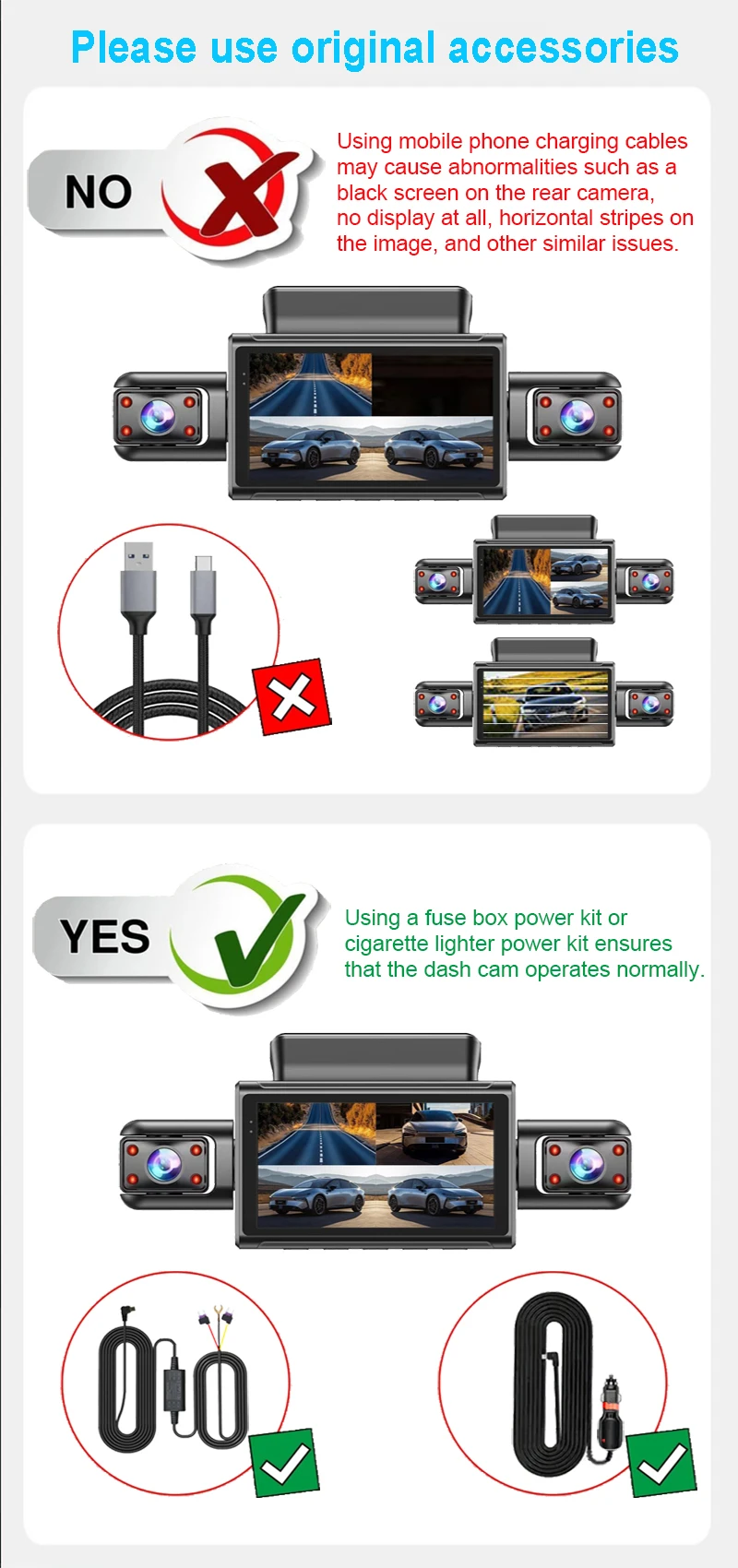

⚠️ Important Usage Notice
Ordinary USB adapters and phone charging cables cannot be used and may cause:
🚫 Black screen
🚫 Abnormal video display
🚫 Horizontal line interference and other malfunctions
Specialized power accessories must be used to ensure normal and stable operation of the dash cam.
For any questions during use, please contact our online customer service or reach out to our professional technical advisor via the card included in the package.

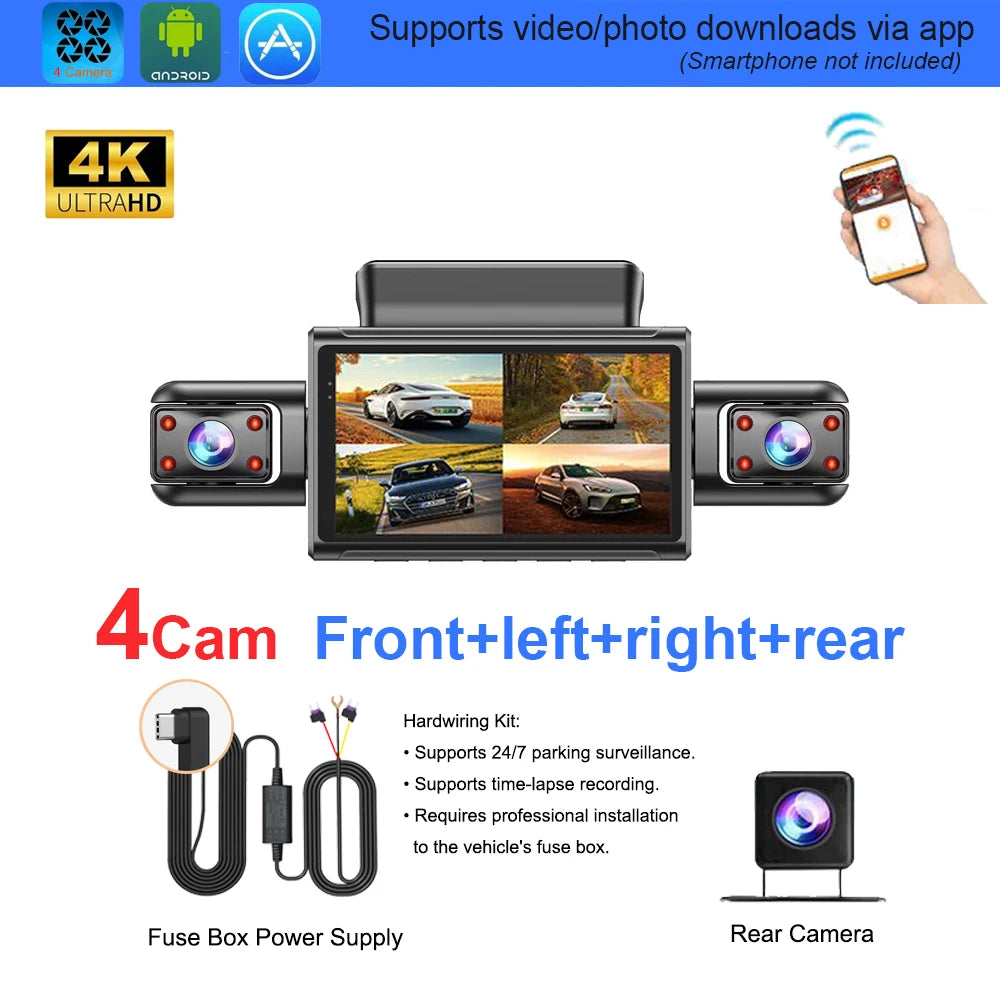

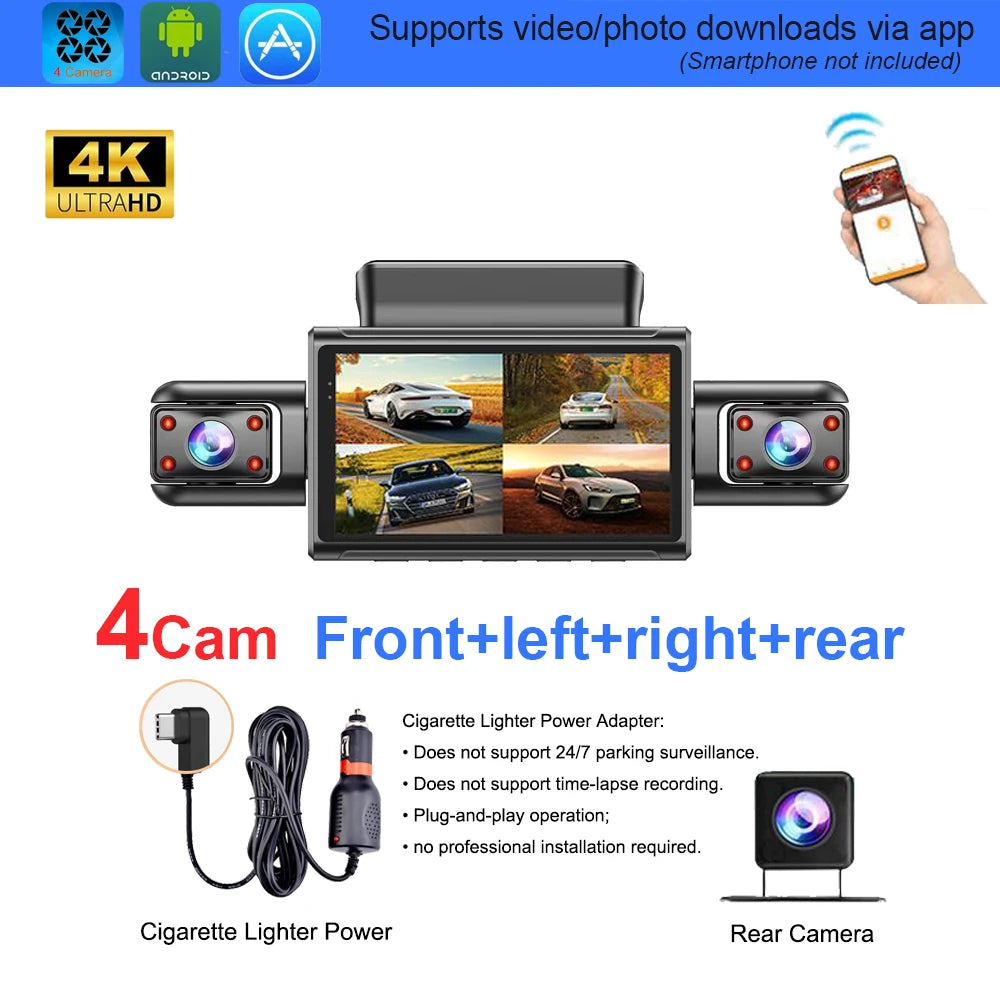

📦 What's Included
Standard Package:

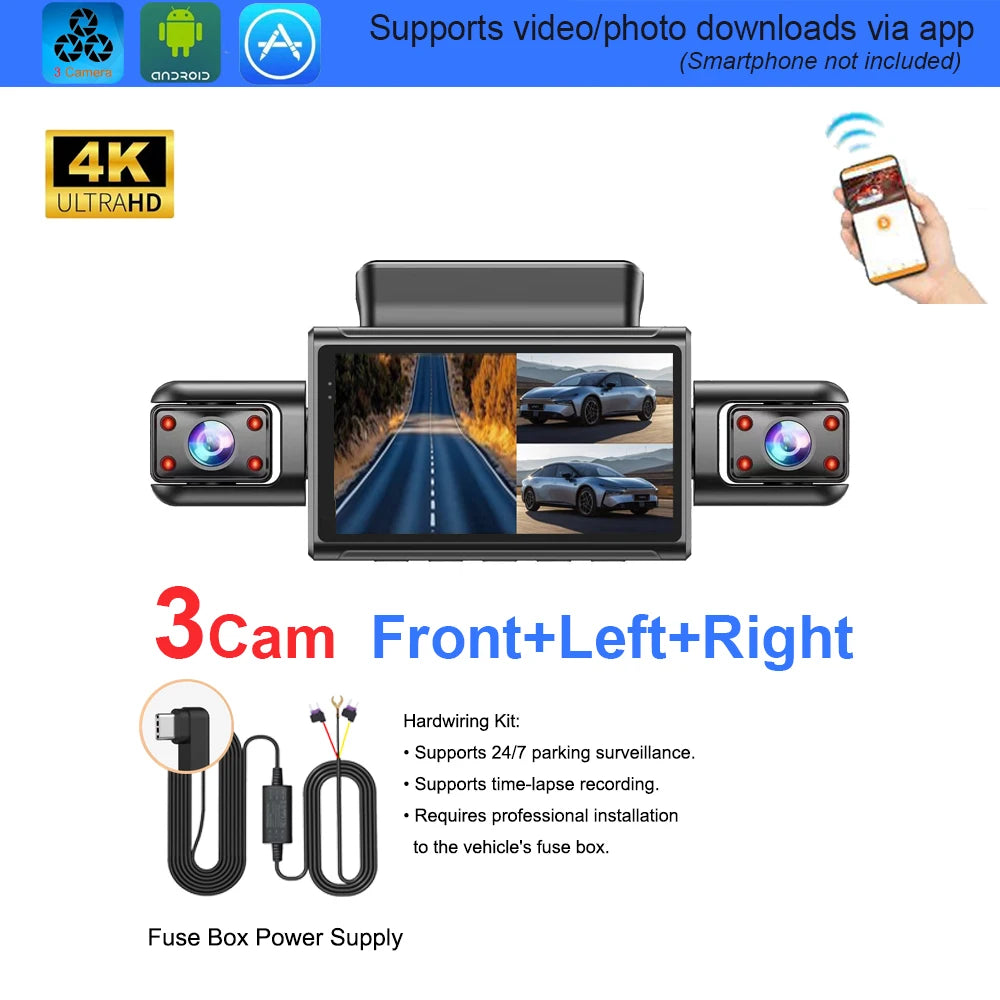

📌 Main Dash Cam Unit (3.0" display + Front/Left/Right cameras)
📌 Parking Mode Hardwiring Kit or Cigarette Lighter Power Adapter (Included based on your order selection)
📌 User Manual (download via QR code)
Optional Add-ons:

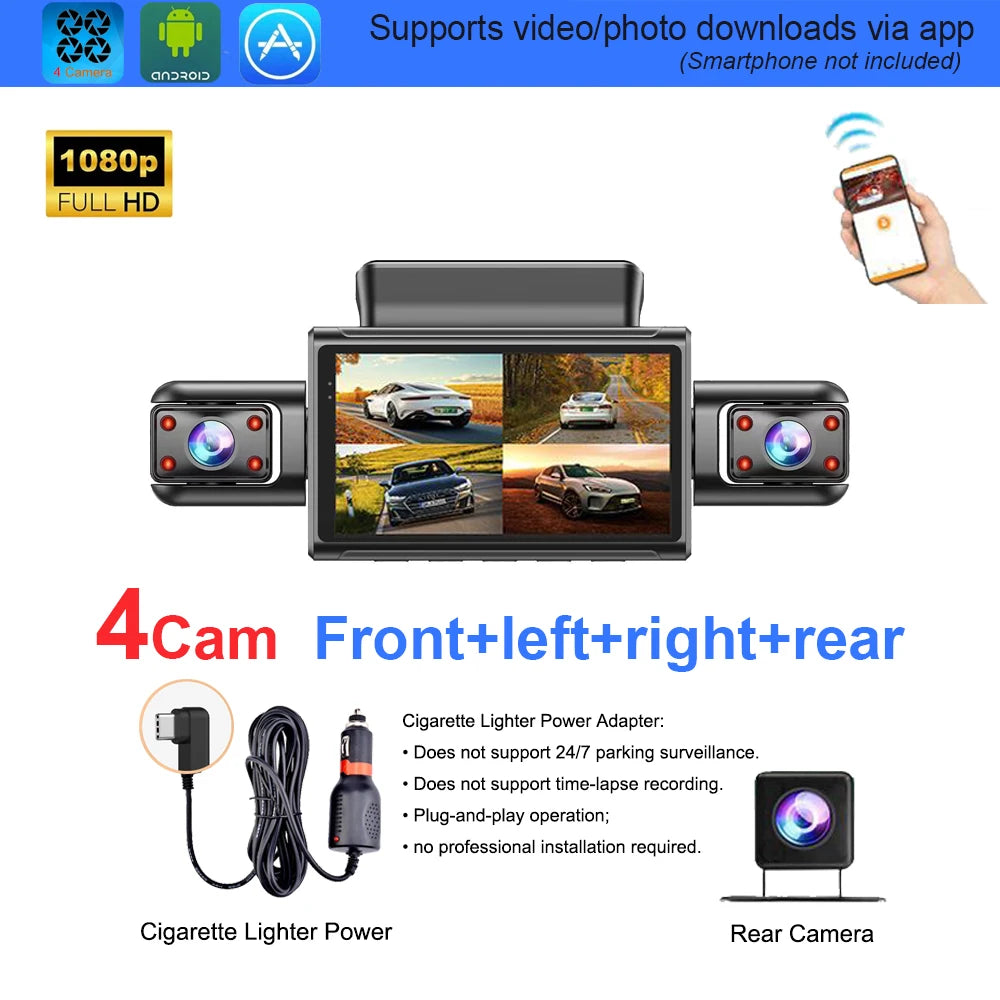

📌 High-Resolution Rear Camera (sold separately)
📌 High-Speed microSD Card (64GB/128GB, sold separately)
📦 About Product Accessories
If you need to purchase compatible accessories separately, you can do so via the links below:
🔗 Compatible Rear Camera Link:➡️ Please select the [2.5HPJ USB Fisheye] package
🔗 Compatible Fuse Box Power & Car Charger Link:
🔌 Power Supply Guide
1. Use Only Recommended Power Sources
⚠ Do not use your own cables/adapters – they may cause camera malfunctions or display issues.
🔌 Required Power Specs: DC 5V/2.5A
2. Choose Your Power Option:
🔋 Option 1: Hardwiring Kit
✔ Pros:
Enables 24/7 parking mode (records even when car is off)
Auto power cut-off when battery voltage is low (protects car battery)
✖ Cons:
Requires professional installation (connects to fuse box)

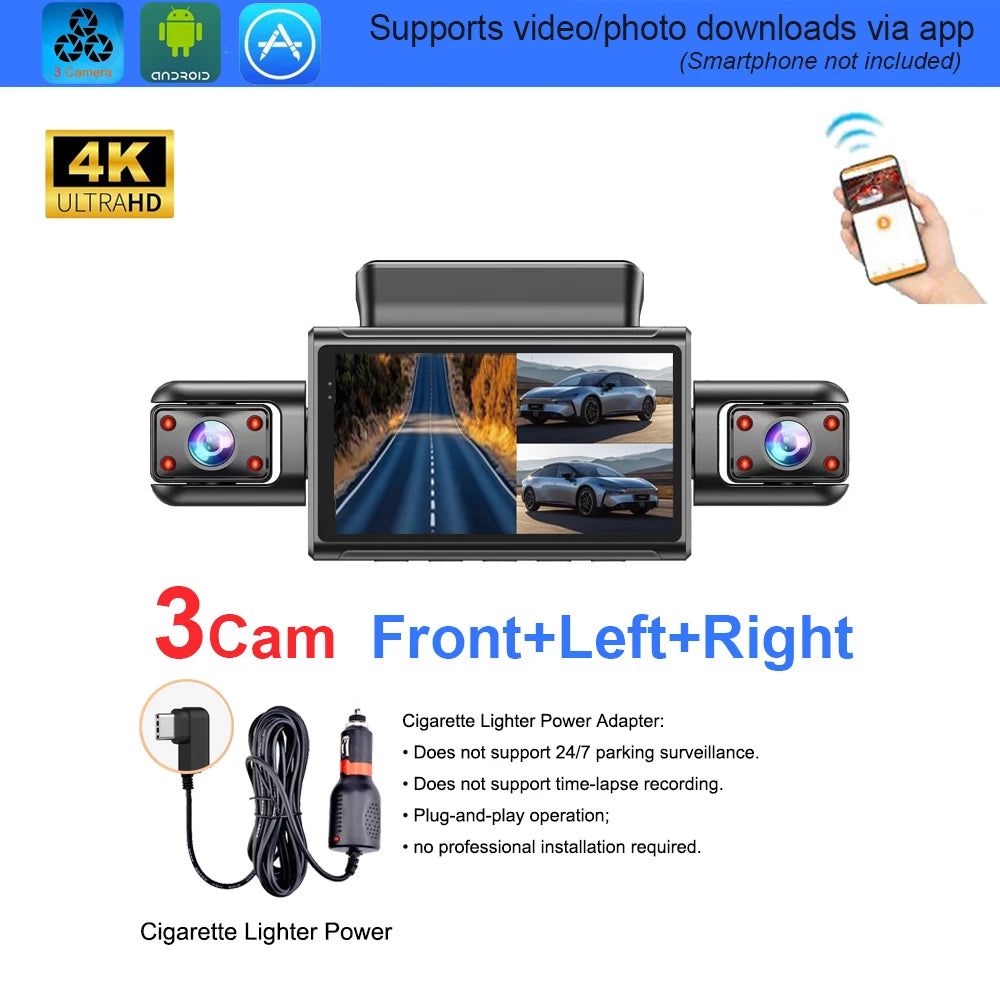

🚗 Option 2: Cigarette Lighter Adapter
✔ Pros:
Easy plug-and-play setup
✖ Cons:
No parking mode (powers off with ignition)
💡 Recommendation:
For Full Features – Get Hardwiring Kit (Professional installation recommended)
For Basic Use – Lighter Adapter Works (Plug & play setup)
🚫 Standard phone USB cables WILL NOT WORK
Generic Type-C cables cannot provide stable power
Third-party adapters may cause feature failures or unstable performance
💡 Solution:
Use only the included hardwiring kit (for parking mode)
Or purchase our official cigarette lighter adapter (for basic recording)
💾 Storage Card Requirements
1. No Built-in Storage – SD Card Required
📌 Must purchase a microSD card separately (not included)
📌 Minimum Requirement: U3/V30 or higher speed class(V90 - Optimal for 4K recording)
📌 Recommended: High-endurance cards (128GB ideal)
2. Maintenance Tips:
🔧 Format monthly for optimal performance
⚠ If card repeatedly asks to format: Replace with a compatible high-endurance card
✅ Quality Assurance
🔍 Every unit undergoes 2+ rounds of testing before shipment.
📦 All packages are tracked – multi-unit orders may arrive in separate shipments.
🛠 Missing items? Contact support or wait for remaining parcels.
🔍 Usage Tips
1️⃣ Remove protective film from cameras & screen before use.
2️⃣ Clean lenses monthly for clearest footage.
3️⃣ Need help? Contact support for the full user manual.
🚨 Important Notes
microSD card required for recording (sold separately).
Parking mode only works with hardwiring kit.
Professional installation recommended for hardwiring.
For more details, please refer to the user manual.
